ST Link Connect

In progress

Board used to connect ST Link debugger and UART to my custom PCBs like:

First version (v0.1) was created for my custom SWD connector.

In version v0.3 support for UART and 2 GPIOs was added to my custom SWD connector.

1. Versions

v0.1

  • routes only pins needed for programming (SWD, Reset and VDD)

v0.1

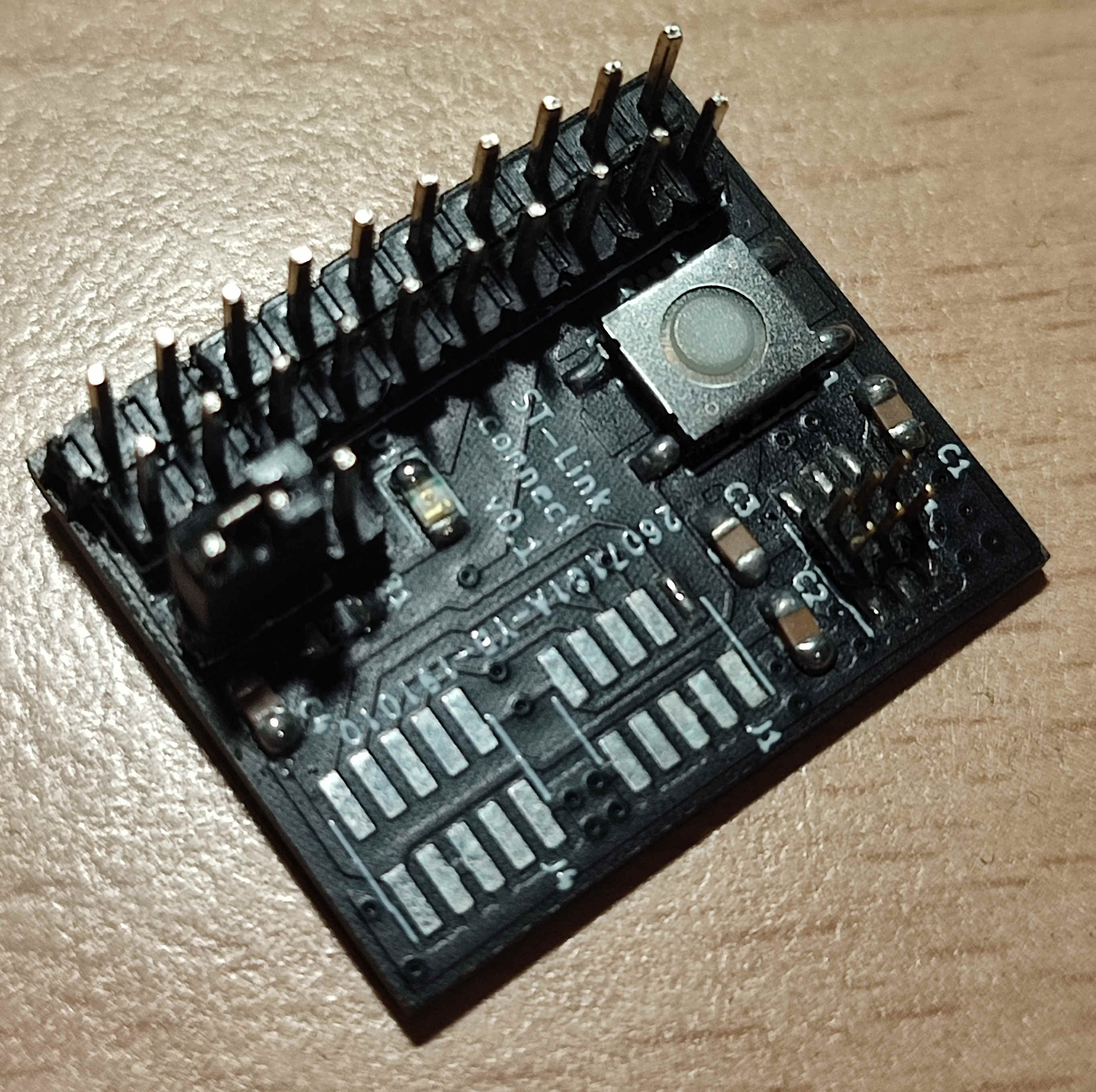

Figure 1. STLinkConnect v0.1

v0.3

  • compatible with v0.1

  • additionally routes UART and two GPIOs.

  • program STM boards

v0.3
Figure 2. STLinkConnect v0.3
app
Figure 3. STLinkConnect app

v0.4

In development

  • compatible with v0.3

  • support for JLink debugger

2021/06
