MQTT display
1. Info
Displaying the following information:
-
current weather and forecast for Ljubljana
It uses:
-
ESP32
-
cheap ILI9341 display
-
MQTT
Figure 1. Example
2. PCB:
2.1. v0.1

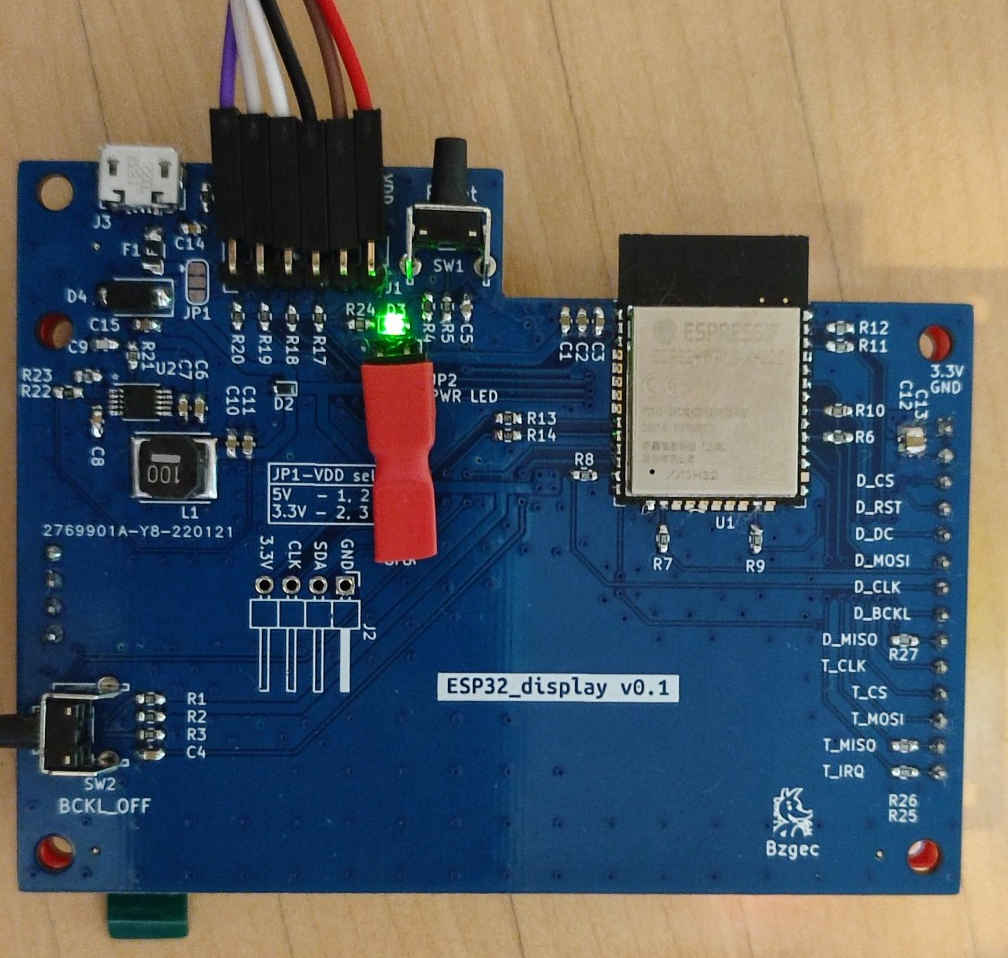

Figure 2. HW v0.1

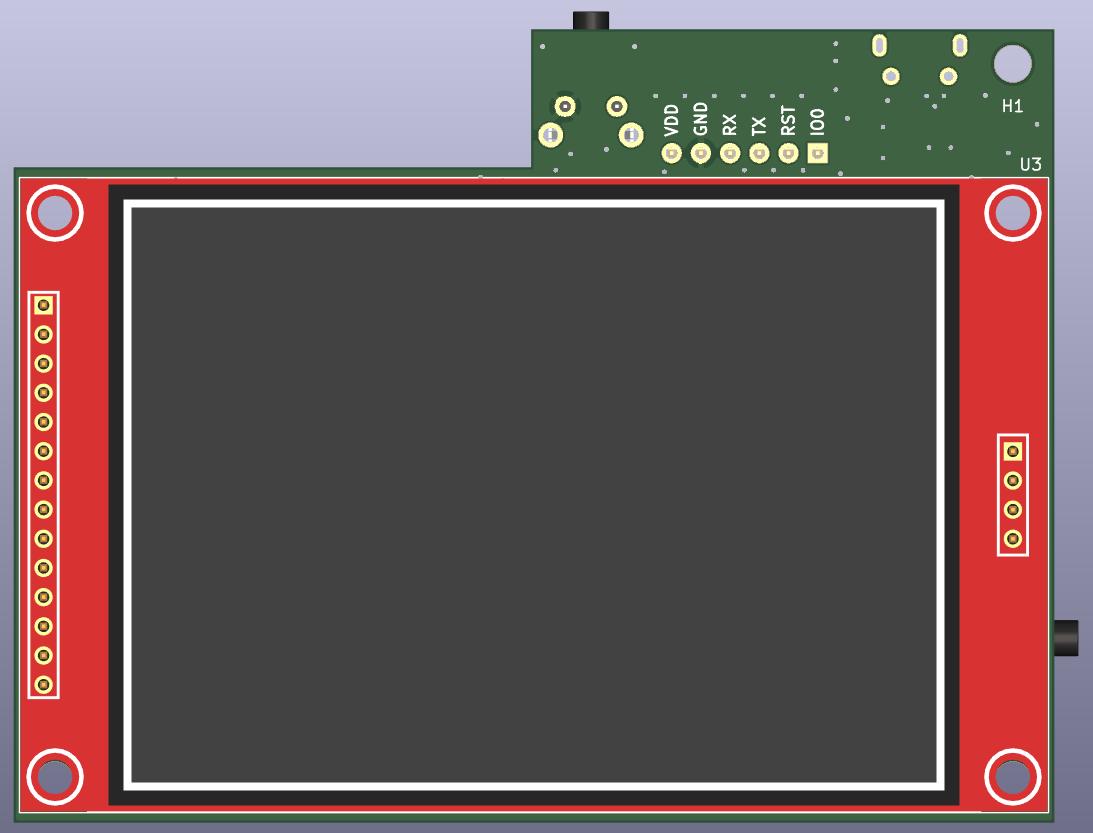

Figure 3. HW v0.1 - top

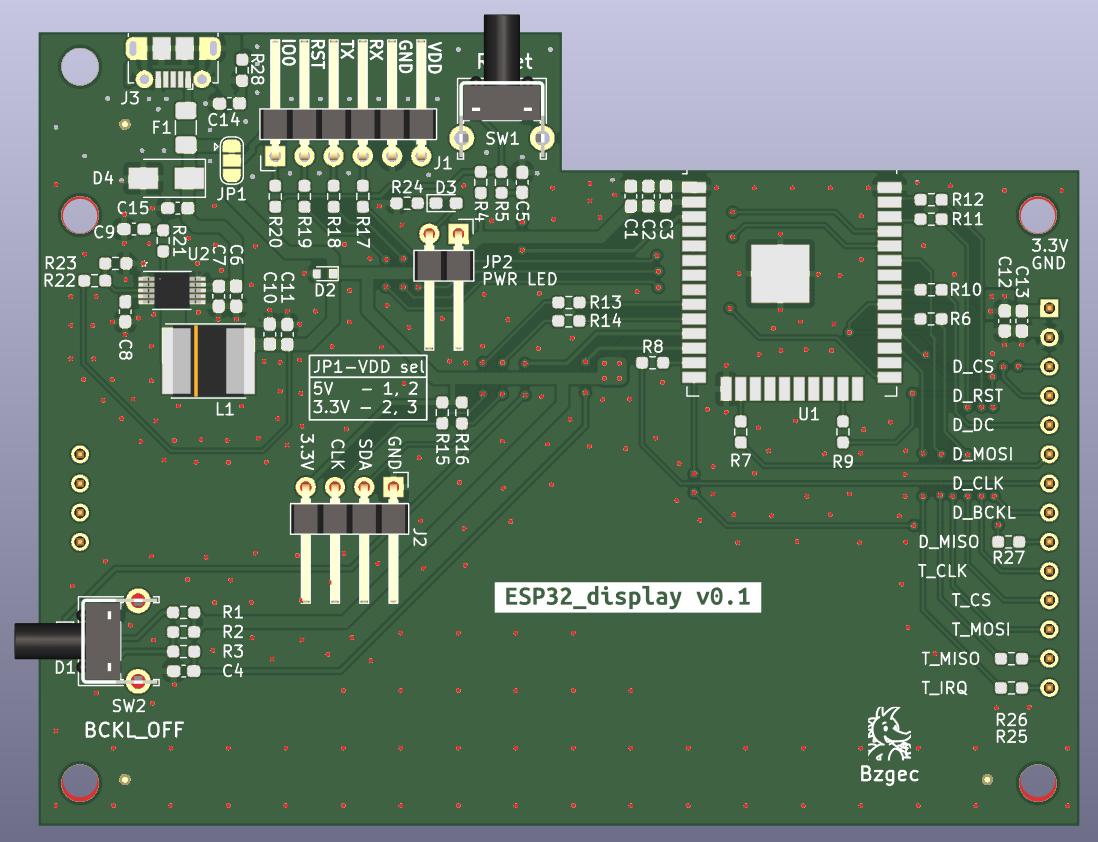

Figure 4. HW v0.1 - bottom
